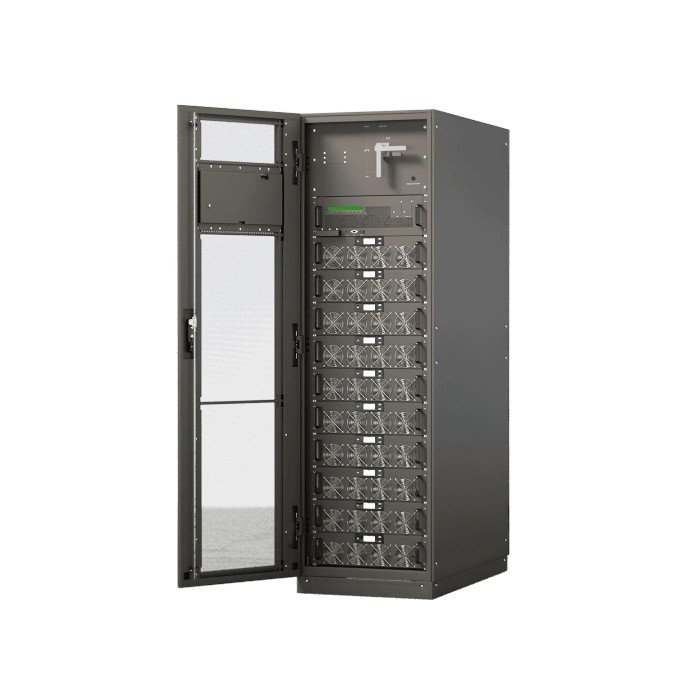

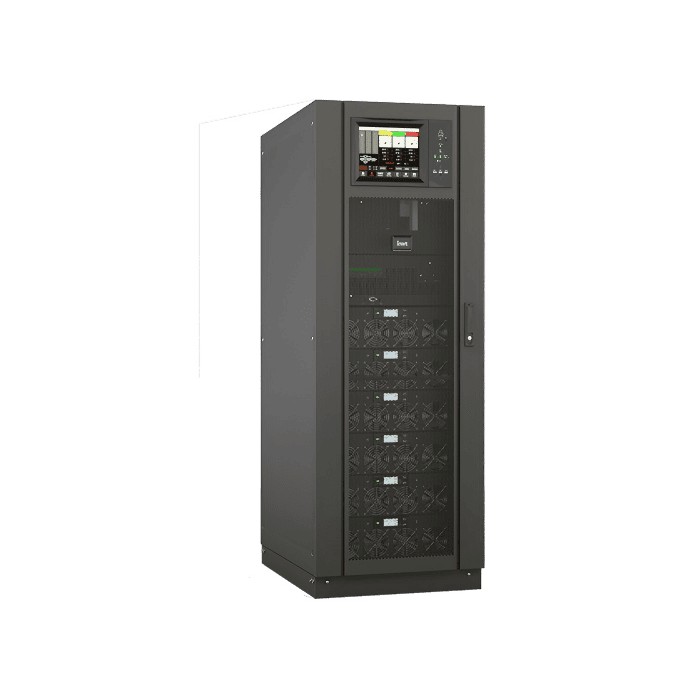

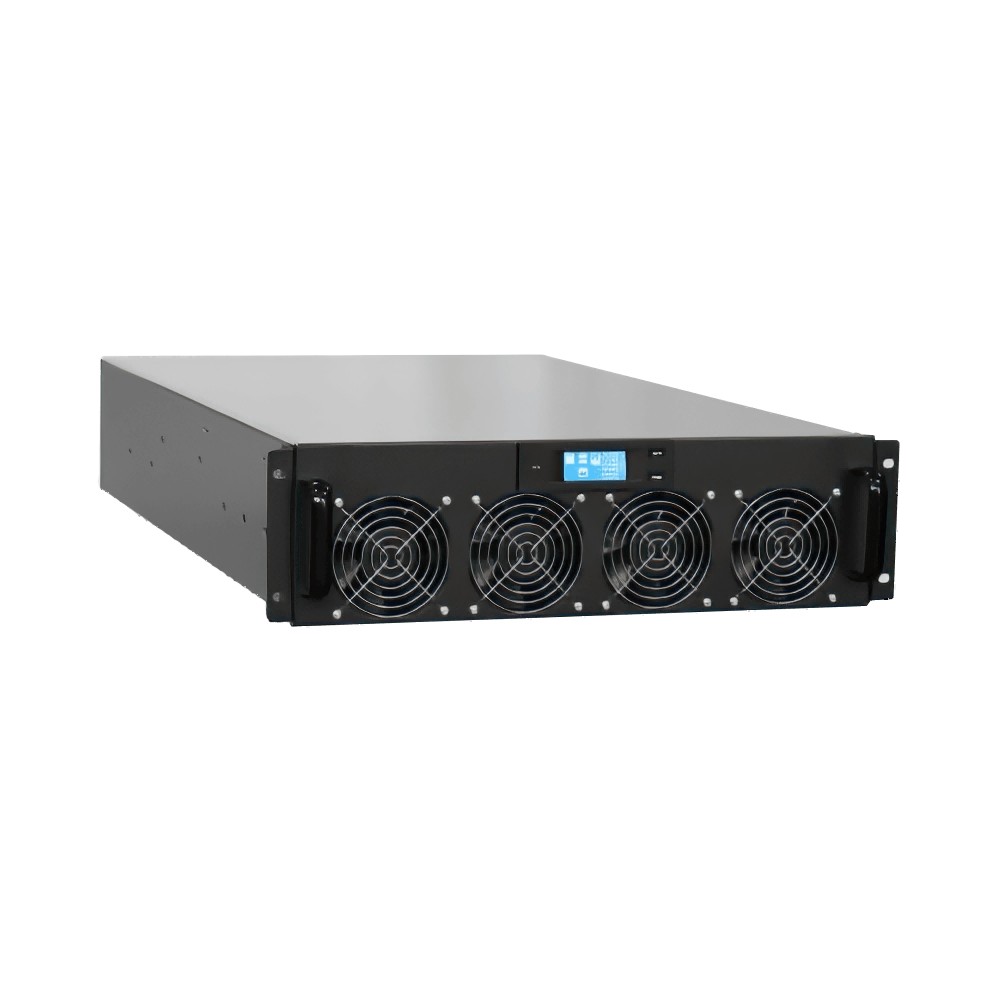

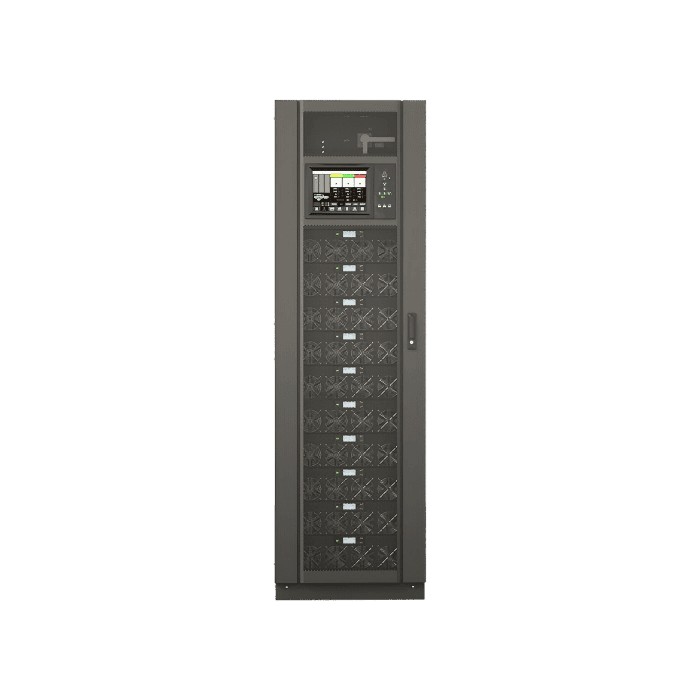

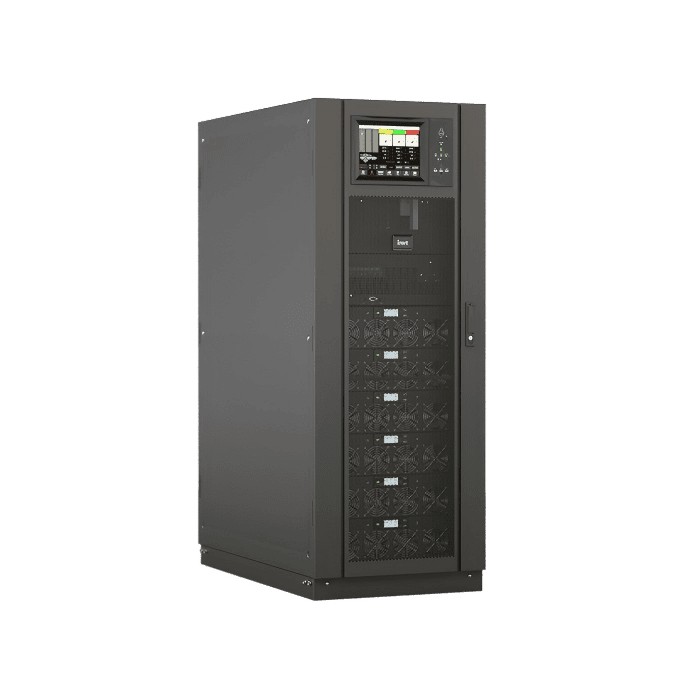

SOETECK Modular Online UPS 150kVA-300kVA with 25/30kVA Power Module

The SHUYI SY-M Series 150-300kVA Modular Online UPS is a high-performance uninterruptible power supply product developed by Hefei Shuyi Digital Power Co., Ltd. It covers a power range of 20-200kVA and adopts a three-in, three-out, dual-conversion online operation mode. With excellent performance and flexible design, it is widely used in key industries such as government, finance, communications, education, transportation, climate, broadcasting and television, industry, taxation, healthcare, energy and electricity, providing stable and reliable power protection for various important equipment and systems

System Capacity	Connection
150KVA-300KVA	Three-phase five-wire system
Rated Voltage	Rated Frequency
380/400/415VAC	50/60HZ
Input power factor	Battery Cells
>0.99	40 batteries(32-44 optional)

CATÉGORIES DE PRODUITS

comment pouvons-nous vous aider

Vous pouvez nous contacter de la manière qui vous convient. Nous sommes disponibles 24h/24 et 7j/7 par e-mail ou par téléphone.

NOUS CONTACTER

Nouveaux produits

Parameter Category	Specific Parameter	SYM150/25X	SYM250/25X	SYM120/30X	SYM180/30X	SYM300/30X
Basic Parameters	Model	SYM150/25X	SYM250/25X	SYM120/30X	SYM180/30X	SYM300/30X
Capacity	150kVA	250kVA	120kVA	180kVA	300kVA
Module Cabinet Type	6-module cabinet	10-module cabinet	4-module cabinet	6-module cabinet	10-module cabinet
Input (MAIN INPUT)	Rated Input Voltage (Line Voltage)	380/400/415VAC
Rated Frequency	50/60Hz
Input Voltage Range (Line Voltage)	304~485VAC (full load); 304~138VAC (load 100% to 40% linear derating)
Input Frequency Range	40-70Hz
Input Power Factor	>0.99
Current Distortion Rate (100% linear load)	THDi < 3%
Battery (BATTERY)	Rated Battery Voltage	±240VDC (30~50 cells)
Charging Voltage Accuracy	±1%
Charging Power	20% * active power
Bypass (BYPASS)	Rated Bypass Voltage (Line Voltage)	380/400/415VAC
Bypass Voltage Range	Configurable, default -20% to +15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40%
Bypass Frequency Range	Configurable to ±1Hz, ±3Hz, ±5Hz
Output (OUTPUT)	Rated Output Voltage (Line Voltage)	380/400/415VAC
Rated Output Frequency	50/60Hz
Output Power Factor	1
Voltage Accuracy	±1.0%
Output Dynamic Response	<5% (20%-80%-20% step load); <20ms (0%-100%-0% step load)
Dynamic Recovery Time	<1% (linear load); <5% (nonlinear load)
Output Total Harmonic Distortion (THDv)	<1% (linear load); <5% (nonlinear load)
Inverter Overload Protection	<110%: 1 hour; 125%: 10 minutes; 150%: 1 minute; >150%: 200ms
Frequency Accuracy & Tracking Range	Frequency accuracy: 0.1%; Tracking range: configurable ±0.5Hz~±5Hz, default ±3Hz
Three-phase Phase Accuracy & Peak Ratio	Three-phase phase accuracy: 120°±0.5°; Peak ratio: 3:1
System (SYSTEM)	Efficiency	Main mode: ≥95%; Battery mode: ≥95%
Display	10.4-inch LED+LCD+color touch screen
Supported Languages	Simplified Chinese, Traditional Chinese, English, Russian, Italian, Korean, Portuguese, Spanish, German, Polish, French, Japanese, Czech, Serbian
Standard Interfaces	RS232, RS485, USB, programmable contacts
Protection Grade	IP20 / IP21
Temperature Range	Operating: 0-40℃; Storage: -40℃~70℃
Relative Humidity	0-95% (no condensation)
Noise (1m)	65dB @ 100% load; 62dB @ 45% load
Size & Weight	Host Size (WDH) (mm)	60011001600	60011002000	6009801400	60011001600	60011002000
Module Size (WDH) (mm)	460790134 (SYM25X)	460790134 (SYM25X)	460790134 (SYM30X)	460790134 (SYM30X)	460790134 (SYM30X)
Host Weight (Including Modules) (kg)	376	572	266	382	582
Module Weight (kg)	33 (SYM25X)	33 (SYM25X)	34 (SYM30X)	34 (SYM30X)	34 (SYM30X)
Optional Accessories	SNMP network communication card, lightning protection module, battery temperature compensator, mobile SMS alarm, dust-proof and earthquake-resistant components
Note: Specifications are subject to change without further notice. Manufacturer: Hefei Shuyi Digital Power Co., Ltd.

Parameter Category

Specific Parameter

SYM150/25X

SYM250/25X

SYM120/30X

SYM180/30X

SYM300/30X

Basic Parameters

Model

SYM150/25X

SYM250/25X

SYM120/30X

SYM180/30X

SYM300/30X

Capacity

150kVA

250kVA

120kVA

180kVA

300kVA

Module Cabinet Type

6-module cabinet

10-module cabinet

4-module cabinet

6-module cabinet

10-module cabinet

Input (MAIN INPUT)

Rated Input Voltage (Line Voltage)

380/400/415VAC

Rated Frequency

50/60Hz

Input Voltage Range (Line Voltage)

304~485VAC (full load); 304~138VAC (load 100% to 40% linear derating)

Input Frequency Range

40-70Hz

Input Power Factor

>0.99

Current Distortion Rate (100% linear load)

THDi < 3%

Battery (BATTERY)

Rated Battery Voltage

±240VDC (30~50 cells)

Charging Voltage Accuracy

±1%

Charging Power

20% * active power

Bypass (BYPASS)

Rated Bypass Voltage (Line Voltage)

380/400/415VAC

Bypass Voltage Range

Configurable, default -20% to +15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40%

Bypass Frequency Range

Configurable to ±1Hz, ±3Hz, ±5Hz

Output (OUTPUT)

Rated Output Voltage (Line Voltage)

380/400/415VAC

Rated Output Frequency

50/60Hz

Output Power Factor

Voltage Accuracy

±1.0%

Output Dynamic Response

<5% (20%-80%-20% step load); <20ms (0%-100%-0% step load)

Dynamic Recovery Time

<1% (linear load); <5% (nonlinear load)

Output Total Harmonic Distortion (THDv)

<1% (linear load); <5% (nonlinear load)

Inverter Overload Protection

<110%: 1 hour; 125%: 10 minutes; 150%: 1 minute; >150%: 200ms

Frequency Accuracy & Tracking Range

Frequency accuracy: 0.1%; Tracking range: configurable ±0.5Hz~±5Hz, default ±3Hz

Three-phase Phase Accuracy & Peak Ratio

Three-phase phase accuracy: 120°±0.5°; Peak ratio: 3:1

System (SYSTEM)

Efficiency

Main mode: ≥95%; Battery mode: ≥95%

Display

10.4-inch LED+LCD+color touch screen

Supported Languages

Simplified Chinese, Traditional Chinese, English, Russian, Italian, Korean, Portuguese, Spanish, German, Polish, French, Japanese, Czech, Serbian

Standard Interfaces

RS232, RS485, USB, programmable contacts

Protection Grade

IP20 / IP21

Temperature Range

Operating: 0-40℃; Storage: -40℃~70℃

Relative Humidity

0-95% (no condensation)

Noise (1m)

65dB @ 100% load; 62dB @ 45% load

Size & Weight

Host Size (W*D*H) (mm)

600*1100*1600

600*1100*2000

600*980*1400

600*1100*1600

600*1100*2000

Module Size (W*D*H) (mm)

460*790*134 (SYM25X)

460*790*134 (SYM30X)

Host Weight (Including Modules) (kg)

376

572

266

382

582

Module Weight (kg)

33 (SYM25X)

34 (SYM30X)

Optional Accessories

SNMP network communication card, lightning protection module, battery temperature compensator, mobile SMS alarm, dust-proof and earthquake-resistant components

Note: Specifications are subject to change without further notice. Manufacturer: Hefei Shuyi Digital Power Co., Ltd.
